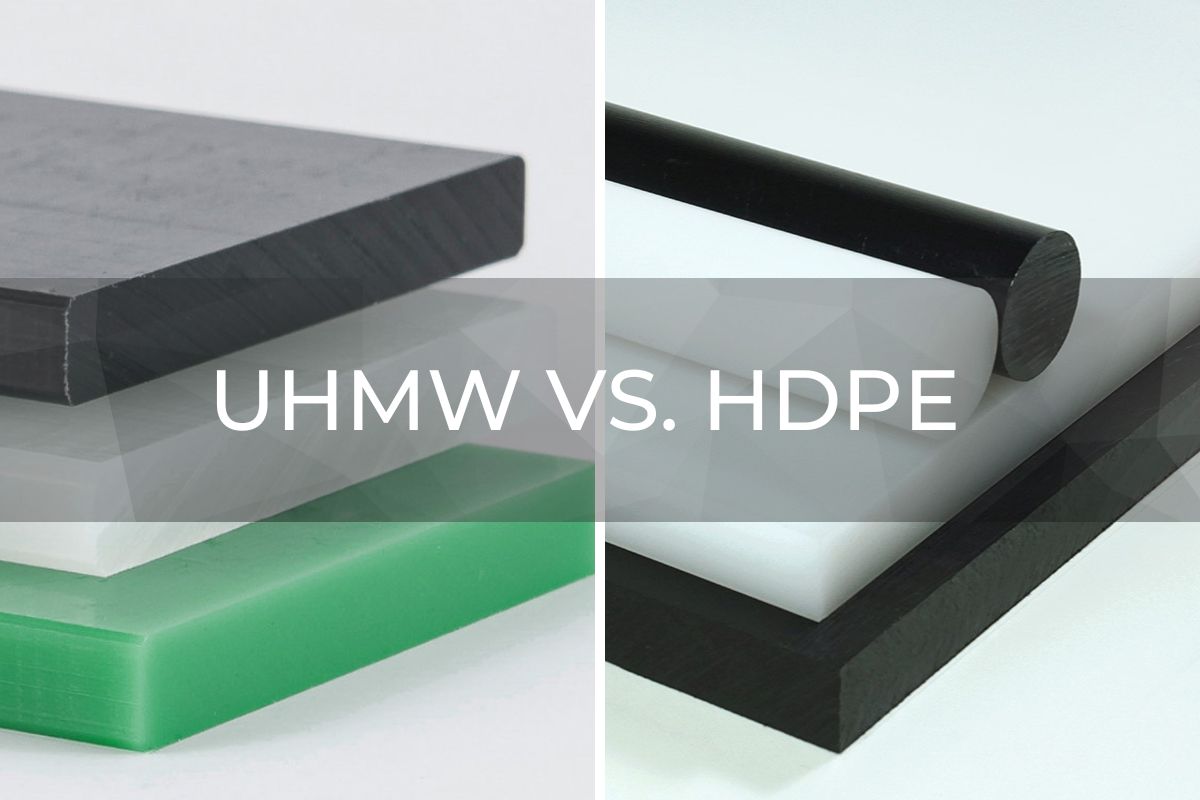

UHMWPE Sheet (ultra high molecular weight polyethylene sheet) and HDPE Sheet (High Density Polyethylene Sheet) are both types of polyethylene, but they have distinct differences in their molecular structure, properties, and applications. Here’s a detailed comparison:
1. Molecular Structure:
UHMWPE:UHMWPE has an extremely high molecular weight, typically ranging from 3.5 million to 10 million g/mol. This results in very long polymer chains.
HDPE:HDPE has a lower molecular weight, typically in the range of 200,000 to 500,000 g/mol. The polymer chains are shorter compared to UHMWPE.
2. Mechanical Properties:
UHMWPE:
Tensile Strength: High, typically around 30-40 MPa.
Impact Resistance: Excellent, making it highly resistant to wear and abrasion.
Friction Coefficient: Very low, which makes it self-lubricating.
Elongation at Break: Very high, often over 300%.
HDPE:
Tensile Strength: Moderate, typically around 20-30 MPa.
Impact Resistance: Good, but not as high as UHMWPE.
Friction Coefficient: Low, but higher than UHMWPE.
Elongation at Break: Moderate, typically around 600-700%.
3. Thermal Properties:
UHMWPE:
Melting Point: Around 130-140°C.
Heat Deflection Temperature (HDT): Lower than HDPE, typically around 60-80°C.
HDPE:
Melting Point: Around 120-130°C.
Heat Deflection Temperature (HDT): Higher than UHMWPE, typically around 80-100°C.
4. Chemical Resistance:
Both UHMWPE and HDPE have excellent resistance to most chemicals, including acids, bases, and organic solvents. However, UHMWPE is generally more resistant to abrasion and wear, which can be important in certain chemical environments.
5. Applications:
UHMWPE:
Industrial Applications: Bearings, gears, wear strips, and conveyor guides.
Medical Applications: Hip and knee replacements, surgical implants.
Marine Applications: Dock fenders, boat hulls.
Ballistics: Bulletproof vests, armor plating.
HDPE:
Packaging: Bottles, containers, and plastic bags.
Construction: Pipes, geotextiles, and geomembranes.
Household Items: Cutting boards, toys, and storage containers.
Automotive: Fuel tanks, interior components.
6. Processing:
UHMWPE:
More challenging to process due to its high molecular weight. It is typically processed using compression molding, ram extrusion, or sintering.
HDPE:
Easier to process and can be injection molded, blow molded, or extruded.
In summary, ultra high molecular weight polyethylene sheet is known for its exceptional wear resistance, low friction, and high impact strength, making it suitable for high-performance applications. HDPE, on the other hand, is more versatile and cost-effective, making it ideal for a wide range of everyday applications.
