Marine Fender Face Pad
Marine Fender Face Pad
Marine Fender Face Pad
Marine Fender Face Pad
Marine Fender Face Pad
Marine Fender Face Pad

Marine Fender Face Pad

Get Latest Price
Min. Order:1 Kilogram
Transportation:Ocean
Packaging & Delivery
Selling Units : Kilogram

The file is encrypted. Please fill in the following information to continue accessing it

workshop7~1
Product Description

Detailed description



Product Description

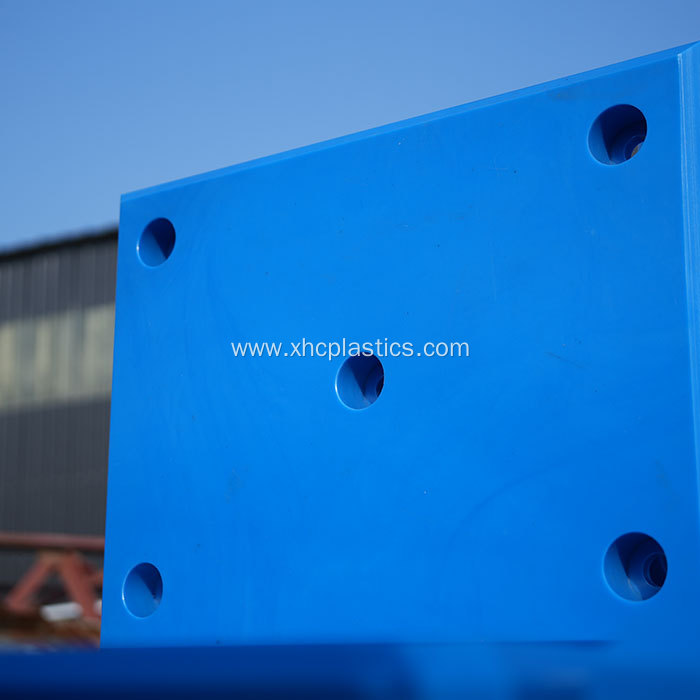

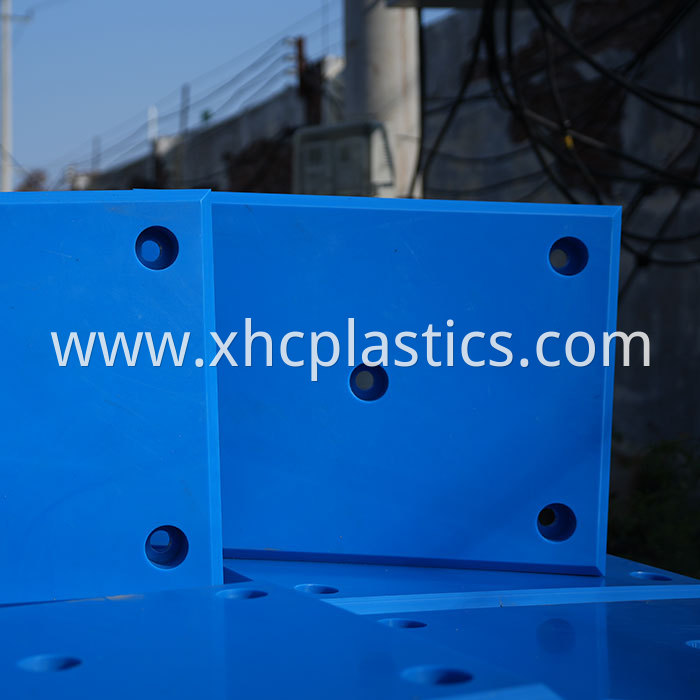

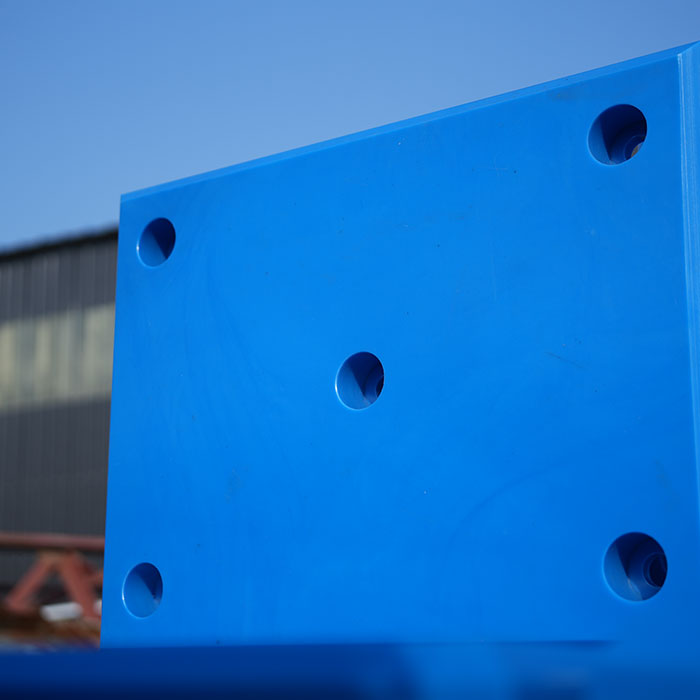

UHMWPE marine fender pads is made of top virgin PE 1000 PE 500 material with good wear resistance , impact resistance , abrasion resistance.

Corrosion-resistant fender panels are mainly used for ultra-high molecular weight polyethylene panels, which have excellent wear resistance and corrosion resistance.

Due to the corosionveness of seawater it is necessary to select special wear-resistant products, and ultra-high molecular weight polyvethylene panels UIHIMWPE PE 100 material has excellent wear resistance, is relativelylight and resistant to seawater corosion, so itis an excelentfender pads material. We specialize in the production of corosion-resistantfender panels of various specifications for ports and terminals, which can be procesed acording to drawings or according to your specied specifications. We have a lot of experience in making fender panels and corner panels, and provide you with more Operable products.

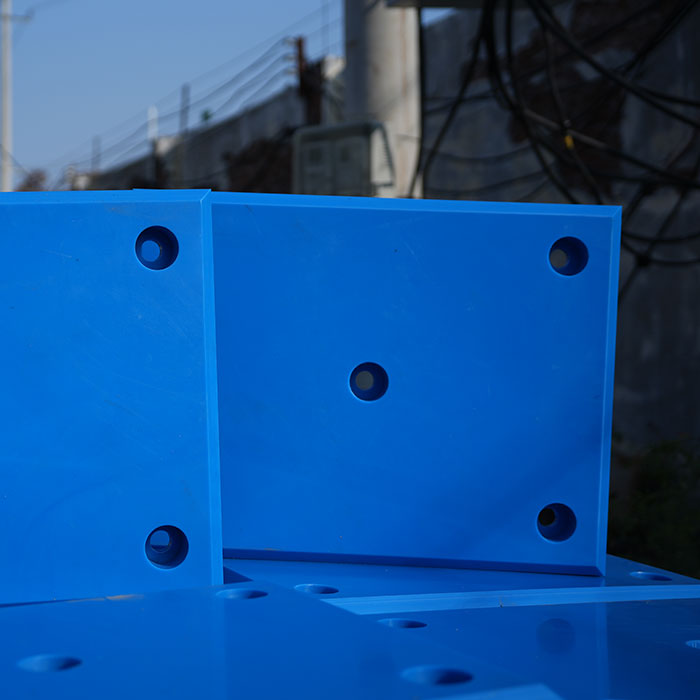

UHMWPE Fender Pad



Advantage

-Very high impact strength

-Very low fricyion coefficient

-Very high abrasion resistance

-UV +Ozone resistance

-Non-conducting (optional)

-100% recyclable, non-rottening

-Cut to size sheet, all size isavailable with us.



Specification

Standard color

Black, Yellow, Blue, Green, Red, White, other colors are available upon request.

For special drawing and properties of UHMW-PE Fender facings/UHMW-PE Fender pad, please contact us.





Properties




Item
  Test

method

Unit
UHMWPE

1000-V
UHMWPE

1000-DS
Density  ISO1183-1 g/cm3 0.93-0.95 0.95-0.96

Yield Strength
 ASTM

D-638

N/mm2
15-35 15-35

Breaking

Elongation

 ISO527

%

>200%

>100%
 Impact strength  ISO179 Kj/m2 130-170 90-130
Abrasion  ISO15527 Steel=100 80-110 110-130
 Shore    Hardness  ISO 868 Shore D 60-76 60-76
 Friction Coefficient  ASTM

D-1894
Unitless <0.2 <0.2

     Operating

temperature


-80 to +80

-80 to +80
