Basic Info.

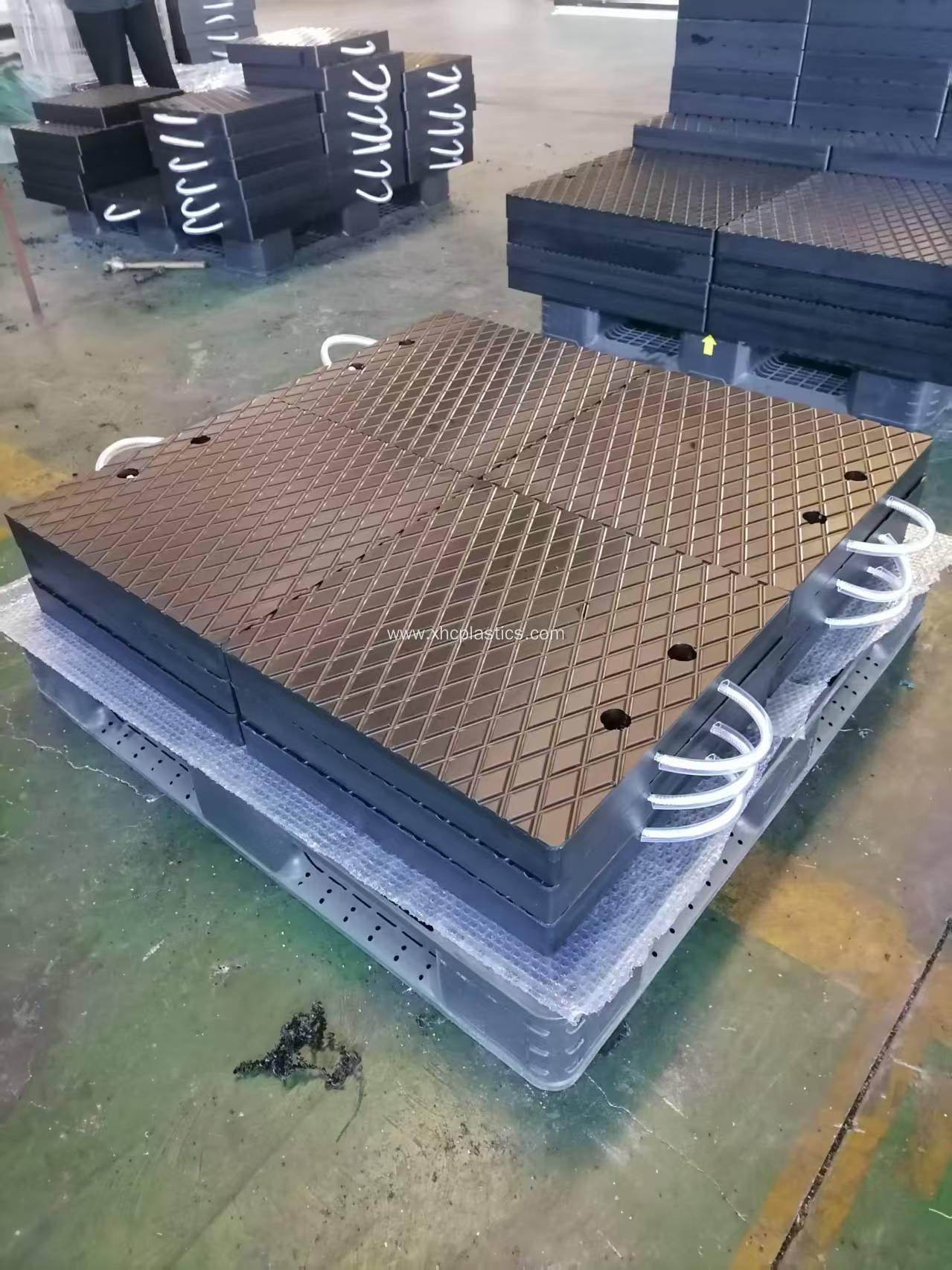

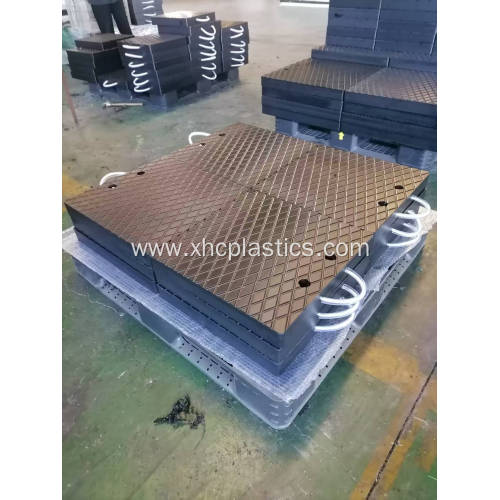

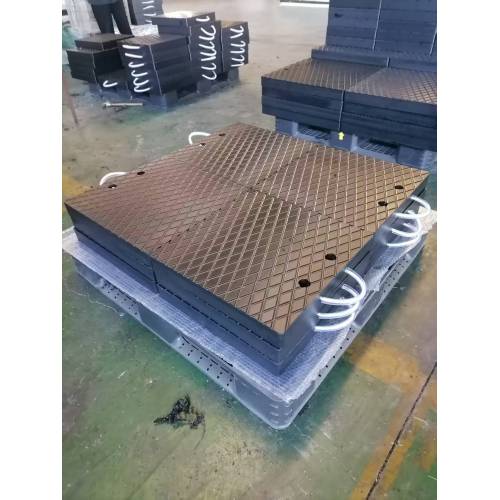

Our Plastic Crane Outrigger Pads are made from high quality UHMWPE material, a safer alternative to wood and steel plates, designed to withstand extreme pressure and large load capacities.
Strong, lightweight and easy to handle, our outrigger pads provide maximum strength and support for the toughest lifting applications...and they won't splinter or corrode! Our tough, functional pads are water, oil and chemical resistant and are able to conform to the contours of uneven terrain while maintaining their shape.
Plastic crane outrigger pads for boom truck are suitable for various factories and machinery.
Widely used by operators of access platforms, vehicle mounted boom lifts, cranes and mobile plant, and for exhibition and trailer units, they provide effective support for stabilisers and outrigger feet on terrain where load bearing capacity is an issue, such as soft ground or sensitive flooring. They reduce the overall pressure on the ground by spreading the load over a larger surface area and effectively supporting the equipment.
Plastic crane outrigger pads for boom truck DIMENSIONS
| Thickness(mm) | Specification(mm) | Weight(kgs) | Load bearing(tons) |
| 25 | 500*500 | 6.25 | 55 |
| 600*600 | 9 | 60 | |
| 800*800 | 16 | 81 | |
| 1000*1000 | 25 | 93 | |
| 1200*1200 | 36 | 130 | |
| Dia.800 | 12.5 | 78 | |
| Dia.1000 | 20 | 91 | |
| Dia.1200 | 28 | 110 | |
| 40 | 500*500 | 10 | 56 |
| 600*600 | 14.4 | 61 | |
| 800*800 | 25.6 | 82 | |
| 1000*1000 | 40 | 94 | |
| 1200*1200 | 57.6 | 131 | |
| Dia.800 | 20 | 80 | |
| Dia.1000 | 32 | 92 | |
| Dia.1200 | 45 | 130 | |
| 50 | 500*500 | 6.25 | 58 |
| 600*600 | 9 | 62 | |
| 800*800 | 16 | 85 | |
| 1000*1000 | 25 | 98 | |
| 1200*1200 | 36 | 140 | |
| Dia.800 | 12.5 | 83 | |
| Dia.1000 | 20 | 95 | |
| Dia.1200 | 28 | 137 | |
| 80 | 800*800 | 38.4 | 86 |
| 1000*1000 | 60 | 99 | |
| 1200*1200 | 86.4 | 133 | |
| Dia.800 | 30 | 84 | |
| Dia.1000 | 48 | 96 |
Features
·Engineered Thermoplastic Construction
·Industrial Grade Safety Texturing
·Rounded Edges & Corners
·Waterproof and Chemical Resistant
·Non-Conductive
·Personalization stamping, engraving, decal options
Application
For more details of Plastic crane outrigger pads talk to our team about which size is best suited to your application.
